Bug?

[Marc Draco]

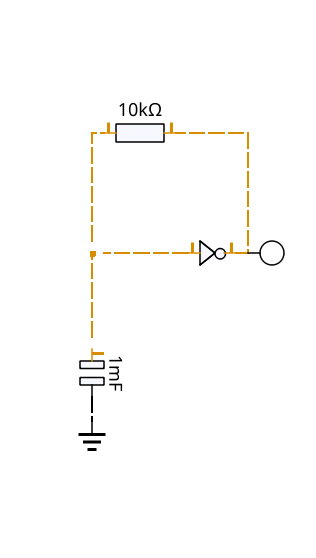

Doesn't say how you want these formatting. This is a really good little sim - but no updates recently? That's such a shame as a good logic sim is so hard to find. This is a very simplified inverter oscillator. I know you have a clock in there but I was testing something else when this popped into my head. [image.png]
There's nothing to power the IC (obviously) but since we don't know the startup condition that shouldn't matter. Normally the cap is discharged and the inverter output is 1, charging the cap via the resistor and swapping the state - which discharges the capacitor in a fairly nasty looking sawtooth (a current sink/source would be required for a proper saw but you likely already know all of this).

Could this go on the "TO DO" pile perhaps?
